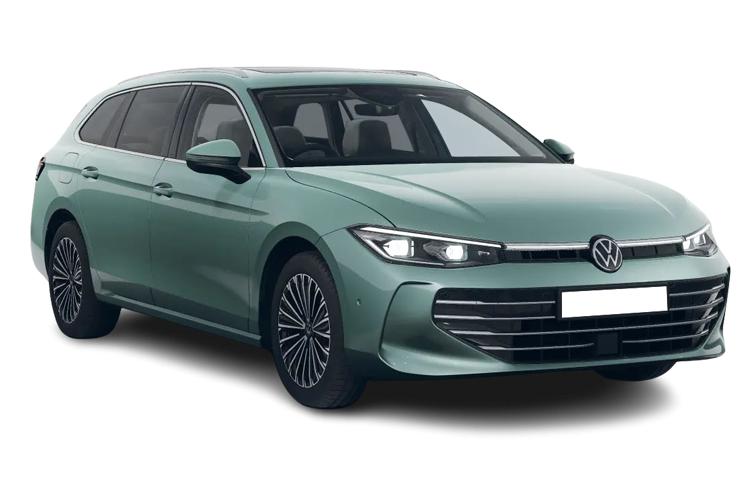

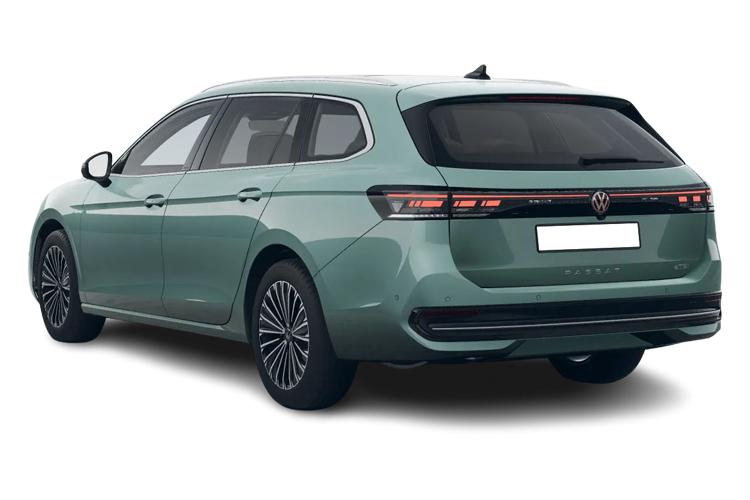

VOLKSWAGEN PASSAT ESTATE 1.4 TSI PHEV GTE Advance 5dr DSG Lease Deals

Key Information

Transmission Automatic

Fuel Type Hybrid

Top Speed 138mph

Range 37miles

Real World Estimate 31miles

Battery Size 13kWh

Co2 28.00g/km

Rapid Charging Plug CCS

AC Plug Type Type 2

0 - 62mph 7.60s

Engine Size 1.4litres

Data provided by CAP-HPI database - Ref# 89420

Options

Standard Equipment

Technical Data

Driver Convenience

Adaptive cruise control including Front Assist, radar sensor controlled distance monitoring system, City emergency braking system
Driver alert system
Driver profile selection
Exterior temperature gauge with frost alarm
Lane assist
Low washer fluid warning light
Multifunction computer includes visual gear
One touch indicator turn signal
Proactive occupant protection
Security and service including e-call
Socket AC Type 2
Speed sensitive power steering
Speedo and rev counter, electronic odometer, trip, service interval display and fuel gauge
Traffic jam assist
Voice activation
We connect plus
Wireless app connect

Engine/Drivetrain/Suspension

Battery regeneration during braking
Electronic engine sound without deactivation
Exterior e-sound
Misfuel prevention device
Petrol Particulate Filter
Start/Stop function
Two charging cables 16amp for wallbox/chargepoints (mode 3) and 10amp mains charge cable (mode 2)

Entertainment

Aerial for radio integrated into rear windscreen
DAB Digital radio receiver
External, USB type C data sockets with increased charging performance front (45 Watt)

Exterior Features

Auto dimming interior rear view mirror
Automatic headlights with dusk sensor
Automatic leaving home and manual coming home lighting functions
Black radiator grille with chrome louvres
Body colour bumpers
Body colour door handles
Body coloured door mirrors with integrated indicators
Charging point inlet on radiator grille
Chrome side window surrounds
Front and rear electric windows
Fully galvanised body
Gloss black finish on B pillar
Heated rear window
IQ.LED matrix projection technology headlights w. washers, dynamic curve lighting, dual U-shaped LED DRL, LED indicators, static cornering fog lights
LED rear lights
LED rear number plate lights
LED third brake light
Plastic load sill protection
Rain sensor
Rear side wing doors
Rear tinted glass from B pillar backwards, approx 65% tinted
Rear window wash/wipe
Remote electrically adjustable and foldable heated door mirrors including automatic dimming function on drivers side door mirror puddle lights
Silver anodised roof rails
Trapezoid exhaust tailpipes, left and right
Unique GTE badging
Unique GTE radiator grille with blue strip
Warning lights for open tailgate and doors
White instrument lighting
Windscreen wipers/ intermittent wipe + 4 position delay

Interior Features

12V socket in front centre console
12V socket in luggage compartment
3 seat bench in 2nd row
40:20:40 split folding rear seat backrests
Climate control - 3 Zone electronic air conditioning with automatic air recirculation
Driver's door storage compartment for 1.0 litre bottle
Driver/front passenger seat height adjustment
ErgoComfort seat with seat cushion tilt adjustment, thigh support and electric backrest adjustment on the driver side
Extending luggage compartment cover with convenience opening, stowable
Front + rear carpet mats
Front and rear interior lighting with delay and dimming function
Front centre armrest with storage compartment and two rear air vents
Front cupholders x2 with covers
Front passenger storage compartment for 1.5 litre bottle
Front seats with lumbar adjustment
Height adjustable and removable variable boot floor
Height adjustable rear seat head restraints (x3)
Height/reach adjust steering wheel
Illuminated vanity mirrors
Isofix child seat preparation, outer rear seats
Leather trimmed three spoke multifunction steering wheel and gear knob with blue contrast stitching
Load lashing points x 4 in luggage compartment
Load through provision
Lockable, illuminated, cooled glovebox
Luggage compartment lighting
Rear seat centre armrest with storage compartment
Single front passenger seat
Storage compartment in rear doors
Storage compartment in roof console with cover
Vienna leather upholstery + heated front seats + heated windscreen washer jets

Packs

Discover navigation pro pack - Passat
Easy open package with full electric tailgate/ boot - Passat (Estate)

Passive Safety

3x3 point rear seatbelts
ABS (Anti locking brake system) includes BAS (Brake assist) and EBD (Electronic brake pressure distribution)
Automatic post collision braking
Blue brake callipers
Disc brakes front and rear
Door open warning reflectors
Driver/Front Passenger airbags
Drivers and front passengers safety optimised head restraints, longitudinal and height adjustable
Drivers knee airbag
Electronic parking brake with auto hold
First aid kit and warning triange with 2 face masks
Front and rear passenger curtain airbags
Front passenger airbag deactivation switch
Front side impact airbag
Height adjustable front 3 point seatbelts + pretensioners
Hill hold function
Pre crash preventive occupant protection
Rear door child safety locks
Rear seat side impact airbags
Rigid safety cell with front and rear crumple zones
Tyre pressure loss indicator
Volkswagen roadside assistance
Warning buzzer and light for front seatbelts unfastened
Warning light for rear seat belts if unfastened

Security

Alarm with interior protection and deactivation via infotainment system
Electronic engine immobiliser
Locking wheel nuts
Remote central locking

Trim

Chrome air vent and instrument surround
Cross hatch decorative inserts in dash and door panels
Unique GTE instrument cluster

Wheels

Tyre mobility kit

Electric Vehicle Data

Battery Capacity % guaranteed under warranty

70
Battery Capacity in kWh

13
Battery Charging Scenario 1 - Charge Time (Mins)

300
Battery Charging Scenario 1 - Percentage Change

0-100
Battery Charging Scenario 1 - Power Supply - kW

2.3
Battery Charging Scenario 2 - Charge Time (Mins)

220
Battery Charging Scenario 2 - Percentage Change

0-100
Battery Charging Scenario 2 - Power Supply - kW

3.6
Battery Charging Scenario 3 - Charge Time (Mins)

220
Battery Charging Scenario 3 - Percentage Change

0-100
Battery Charging Scenario 3 - Power Supply - kW

7.2
Battery Charging Scenario 4 - Charge Time (Mins)

Not Available
Battery Charging Scenario 4 - Percentage Change

Not Available
Battery Charging Scenario 4 - Power Supply - kW

Not Available
Battery Leased

No
Battery Type

Lithium-ion
Charging Port Location

Front
Coupler/Connector Type

Type 2
Maximum Charging Rate - kW

7.2
Standard manufacturers Battery warranty - Mileage

100000
Standard manufacturers Battery warranty - Years

8
Usable Battery Capacity

10.4
WLTP - EC (kWh/100km) - Comb

15.4
WLTP - EC (miles/kWh) - Comb

4
WLTP - EC AC Weighted (kWh/100km) - Comb

16
WLTP - EC AC Weighted (miles/kWh) - Comb

3.9
WLTP - Equivalent AER (km) - City

59
WLTP - Equivalent AER (km) - Comb

59
WLTP - Equivalent AER (km) - Comb - TEH

59
WLTP - Equivalent AER (km) - Comb - TEL

60
WLTP - Equivalent AER (miles) - City

38
WLTP - Equivalent AER (miles) - Comb

37
WLTP - Equivalent AER (miles) - Comb - TEH

36.7
WLTP - Equivalent AER (miles) - Comb - TEL

37

Emissions - ICE

CO2 (g/km)

37
HC+NOx

Not Available
Particles

Not Available
Standard Emissions

EURO 6

Emissions - PHEV

WLTP - CO2 Ch Sus (g/km) - Comb

144
WLTP - CO2 Ch Sus (g/km) - Comb - TEH

157
WLTP - CO2 Ch Sus (g/km) - Comb - TEL

144
WLTP - CO2 Charge Depleting (g/km) - Comb

11
WLTP - CO2 Charge Depleting (g/km) - Comb - TEH

15
WLTP - CO2 Charge Depleting (g/km) - Comb - TEL

9
WLTP - CO2 Weighted (g/km) - Comb

28
WLTP - CO2 Weighted (g/km) - Comb - TEH

30
WLTP - CO2 Weighted (g/km) - Comb - TEL

28

Engine and Drive Train

Camshaft

DOHC
Catalytic Convertor

Yes
CC

1395
Cylinder Layout

IN-LINE
Cylinders

4
Engine Code

CB66YY
Engine Layout

FRONT TRANSVERSE
Fuel Delivery

TURBO DIRECT INJECTION
Gears

6 SPEED
Number of Valves

16
Transmission

SEMI-AUTO

Fuel Consumption - ICE

EC Directive 1999/100/EC Applies

No

Fuel Consumption - PHEV

WLTP - FC Ch Dep (l/100km) - Comb

0.6
WLTP - FC Ch Dep (mpg) - Comb

470.8
WLTP - FC Ch Sus (l/100km) - Comb

6.2
WLTP - FC Ch Sus (l/100km) - Comb - TEH

6.9
WLTP - FC Ch Sus (l/100km) - Comb - TEL

6.2
WLTP - FC Ch Sus (l/100km) - Extra High

7.1
WLTP - FC Ch Sus (l/100km) - High

5.6
WLTP - FC Ch Sus (l/100km) - Low

9.6
WLTP - FC Ch Sus (l/100km) - Medium

6
WLTP - FC Ch Sus (mpg) - Comb

45.6
WLTP - FC Ch Sus (mpg) - Comb - TEH

40.9
WLTP - FC Ch Sus (mpg) - Comb - TEL

45.6
WLTP - FC Ch Sus (mpg) - Extra High

39.8
WLTP - FC Ch Sus (mpg) - High

50.4
WLTP - FC Ch Sus (mpg) - Low

29.4
WLTP - FC Ch Sus (mpg) - Medium

47.1
WLTP - FC Weighted (l/100km) - Comb

1.2
WLTP - FC Weighted (l/100km) - Comb - TEH

1.3
WLTP - FC Weighted (l/100km) - Comb - TEL

1.2
WLTP - FC Weighted (mpg) - Comb

235.4
WLTP - FC Weighted (mpg) - Comb - TEH

217.3
WLTP - FC Weighted (mpg) - Comb - TEL

235.4

General

Alternative Fuel Qualifying

Yes
Badge Engine CC

1.4
Badge Power

218
Based On ID

Not Available
Coin Description

TSI
Coin Series

GTE Advance
Generation Mark

6
Insurance Group 1 - 50 Effective January 07

29E
Manufacturers Corrosion Perforation Guarantee - Years

12
Manufacturers Paintwork Guarantee - Years

3
NCAP Adult Occupant Protection %

Not Available
NCAP Child Occupant Protection %

Not Available
NCAP Overall Rating - Effective February 09

Not Available
NCAP Pedestrian Protection %

Not Available
NCAP Safety Assist %

Not Available
Did at least one aspect of this vehicle's safety give cause for concern?

No
Service Interval Frequency - Months

24
Service Interval Mileage

18000
Special Edition

No
Special Order

No
Standard manufacturers warranty - Mileage

60000
Standard manufacturers warranty - Years

3
Timing Belt Interval Frequency - Months

Not Available
Timing Belt Interval Mileage

150000
Vehicle Homologation Class

M1

Performance

0 to 62 mph (secs)

7.6
Engine Power - BHP

218
Engine Power - KW

160
Engine Torque - LBS.FT

184
Engine Torque - MKG

25.5
Engine Torque - NM

250
Engine Torque - RPM

1550
Top Speed

138

Test Cycles

Emissions Test Cycle

WLTP
RDE Certification Level

RDE 2

Tyres

Alloys?

Yes
Space Saver?

No
Tyre Size Front

235/45 R18
Tyre Size Rear

235/45 R18
Tyre Size Spare

TYRE REPAIR KIT
Wheel Style

Not Available
Wheel Type

18" ALLOY

Vehicle Dimensions

Height

1515
Height (including roof rails)

Not Available
Length

4773
Wheelbase

2789
Width

1832
Width (including mirrors)

2083

Weight and Capacities

Fuel Tank Capacity (Litres)

50
Gross Vehicle Weight

2270
Luggage Capacity (Seats Down)

1780
Luggage Capacity (Seats Up)

483
Max. Loading Weight

592
Max. Towing Weight - Braked

1600
Max. Towing Weight - Unbraked

750
Minimum Kerbweight

1678
No. of Seats

5
Turning Circle - Kerb to Kerb

11.7

VOLKSWAGEN PASSAT ESTATE

Customise Your Lease

Deal Summary

Fetching your price

Key Information

Options

Standard Equipment

Technical Data

Specification

Driver Convenience

Engine/Drivetrain/Suspension

Entertainment

Exterior Features

Interior Features

Packs

Passive Safety

Security

Trim

Wheels

Electric Vehicle Data

Emissions - ICE

Emissions - PHEV

Engine and Drive Train

Fuel Consumption - ICE

Fuel Consumption - PHEV

General

Performance

Test Cycles

Tyres

Vehicle Dimensions

Weight and Capacities

Customers Also Liked...

MERCEDES-BENZ E CLASS ESTATE

BUSINESS

PERSONAL

CUPRA FORMENTOR ESTATE

BUSINESS

PERSONAL

PEUGEOT 308 SW ESTATE

BUSINESS

PERSONAL

VAUXHALL ASTRA SPORTS TOURER

BUSINESS

PERSONAL
